X500 Model E Type Turntable Fully Automatic Pallet Wrapping Machine

1

Product Application
1.Pallet wrap machine use LLDPE stretch film as the main packing material to wrap the bulk cargos stacked on the pallet
2.Film provides extra support during transportation and storage to protect them from dust, moisture or damage
3.The pallet wrap machine has been widely used in industries such as glassware, tools, electric & electronic, paper,
pottery, food & beverage, et.

Main Features
1. High efficiency and low electricity-consumption, convenient in operation.
2. The wrapping type and times can be designed on customers’ requirements.
3. Photoelectric sensor test pallet height automatic
4. Auto reset of turn table
5. Pre-stretch ratio: 300%
6. Programmable control and frequency converter is available.
7.PLC control ,manual optional. Wrap cycle (top, bottom, reinforcement) adjustment.
Variable lift speed/ film tension control. Film up/down controls.
8.Pallet wraping machine soft start and soft stop.
9.Suitable for light pallet
10.Remote control sytem ,fully automatic
11.E type turntable ,easy for pallet jack load the pallet on machine



 2

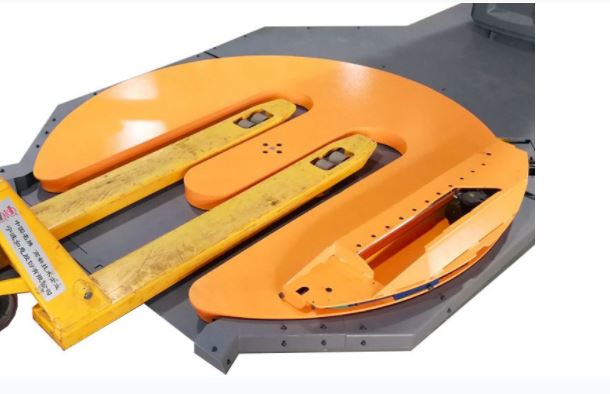

E type turntable


E type turntable, it's easy for pallet jack load the pallet on the turntable .

.



 3

Automatic cut and clamp film


X500 automatic cut and clamp film system, let worker no need use they hand to cut film and put film on pallet any more, cut &clamp fim system will do it automatically





 2

Remote control system


X500 pallet wrap machine, the worker just needs to put the pallet on the turntable and press remote control button, machine will wrap pallet automatically. During this time ,the worker doesn't need to get off the forklift truck and operate machine by hand.

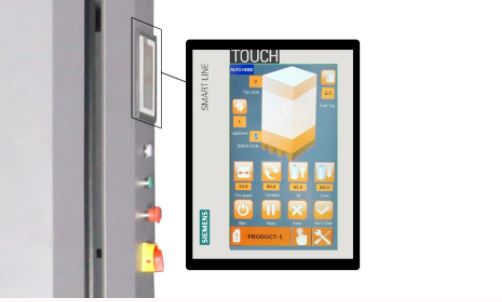

  LCD touch operating system

 LCD touch operating system


SMART WASP pallet wrapping machine use the best touch screen"SIEMEN ", the reaction of the touch screen and function all is perfect. The touch screen can set the "turntable speed .up& down speed and film carriagre speed directly" and we also prepare for our customer 6 wrapping model for they pallet, most of customer they have diffierent pallet to wrap, so the different pallets need different wrapping speed, wrapping force, the customer just need set the 6 model one time, then just choose the right model for they pallet, no need adjsut the parameter every time any more.



 Automatic cut and clamp film

We use Good brand spare part


If you want to buy a good and durable machine,the eletric part will be very very important ,if one eletric use a bad brand ,it;s a big risk for the customer ,becuase one part not work whole machine stop working,and the eletric part problem ,sometime difficult to fix ,because you do not know which part broken from the serval parts ,so our pallet stretch wrapping machine all part we use the famous brand ,we do not want machine have any problem from the eletric parts. So that we can make our our machine be used for lone time without problem.



 Intelligent operation Guiding system



Alarm system


Alarm automatically when emergency.

  Technical Data

Brand SmartWasp
Model X500
Pallet lifted height Minmum 70mm
Fork overall width Maximum 695mm
Load weight Maximum 800KG
Turntable speed 3-12 RPM/mins
Packing height Maximum 2400mm
Turntable size 1650mm.
Stretch Type 300% (By Motor)
Up&down speed 1.5 ~5.5m/min.
Wrapping speed 20-25 loads (Pallet: 1.0x1.2x1.8m.)
Film Width 500mm(750mm optional)
Film diameter 250mm
Film paper Core 76 mm (50 mm optional)
Film weight Maximum 17KG
Machine power 1.9KW
Voltage 220V-240V/50/60HZ Single-Phase
Machine weight 800KG
Machine size 2800*1700*2745mm(L*W*H)
Soft start&stop Inclued
Intelligent Alarm Inclued
stop at original Inclued
Speed Adjustable Inclued
Measure height Automatic
Wrapping force Adjustable
Fix film on pallet Manual
PLC SIEMENS
Inverter SIEMENS
Touch screen X-Line
Sensor brand SICK (Germany Brand)
safety device film carriage bottom safety
Certificate CE
Pallet grip system Yes
Product Memory Five Mode
Optional device NO
Automatic cut film Automatic
