X3 Type Top Pressure Standard Pallet Wrapping Machine

Product Application1

1.Motor Drive Top Plate, stable pressure on goods
2.Pallet stretch wrapping machine use LLDPE stretch film as the main packing material to wrap the bulk cargos stacked on the pallet
3.Film provides extra support during transportation and storage to protect them from dust, moisture or damage
4.The pallet wrap machine has been widely used in industries such as glassware, tools, electric & electronic, paper,
pottery, food & beverage, et.

1. High efficiency and low electricity-consumption, convenient in operation.
2. The wrapping type and times can be designed on customers’ requirements.
3. Photoelectric sensor test pallet height automatic
4. Auto reset of turn table
5. Pre-stretch ratio: 300%
6. Programmable control and frequency converter is available.
7.PLC control ,manual optional. Wrap cycle (top, bottom, reinforcement adjustment.
Variable lift speed/ film tension control. Film up/down controls.
8.Pallet wrapping machine soft start and soft stop.
9.Suitable for light and unsteady pallet
10.automatic cut film



 2

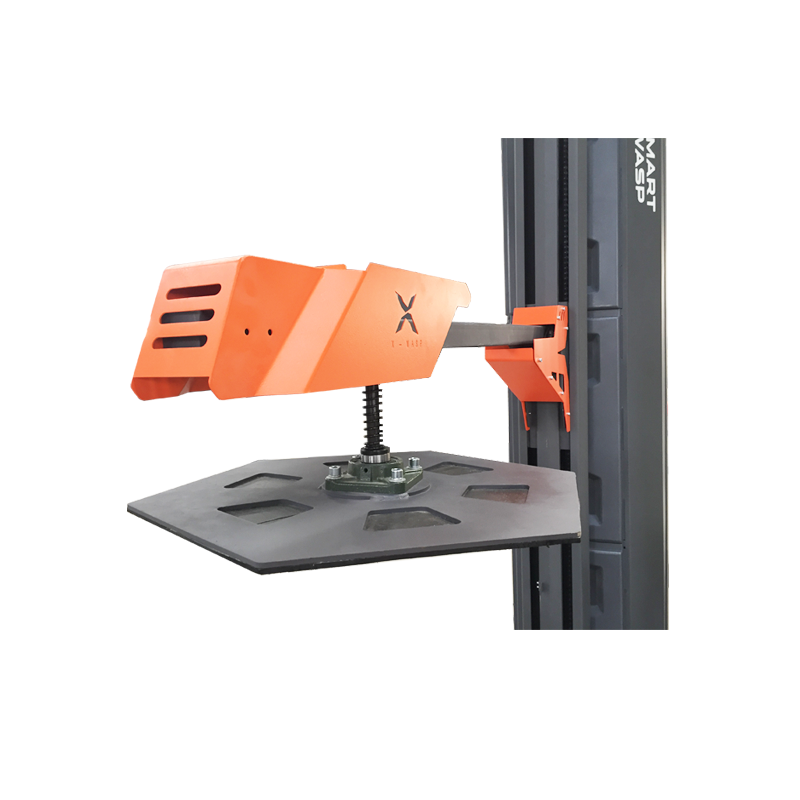

Motor Drive Top Pressure device


Smart Wasp X3 Model with motor drive top pressure plate, the pressure weight 35KG.
The pressure can reach from 600-2000mm, normally in market use cylinder type top pressure plate.
Such pressure just can be 1200-2000mm and must need air compressor.

.



 3



SIEMENS Touch Operating System


Intuitive, easy to understand,has nothing to do with language and skills.





 2

   Save Film Cost

 A. 300% pre-stretch rate for the film, in market, 250% stretch rate. Save 20% cost when you use our machine.
 B. Pre-stretch is normal function. But most of machine in market, use gule stick the rubber on the roller, it's easy broken during working, also let the film too much wrinkle. If have label on pallet, it will be difficult for scan the barcode of the label .
 X3 pallet wrapping machine use ruber conated roller, avoid the rubber dropping problem and stretch film
soomthly, after stretch, film still transparent, easy to scan barcode and see the label.

   3





Advanced Safety Technology


1. Safety device under film carriage to protect the foot or head of the operator
2. Transparent board makes it easy to find problem without opening door
3. Up and down belt deviation and demaged alarm system. Alarming in time to avoid carriage dropping down.

SIEMENS control system 1



Better Spare Parts


SIEMENS PLC
SIEMENS Inverter
SIEMENS Touch Screen
SICK Sensor
Germany SICK Brand Sensor
Germany Weidmuller terminal black
OMRON 24V power supplier



Pallet wrapping machine column



Intelligent Alarm System


1. With LED indicator on machine
Ready for work--Blue color
During working--Green color
Alarm--Red color
2. used with Touch Screen
Touch screen guide the user how to operate machine. If alarm appears, touch screen will show you how to solve problem .

 1

Automatic Cutting Film


After pallet wrapping machine finishing wrapping the pallet, our pallet stretch wrapper will cut the film automatically, no need  worker to cut the film by other tool or hand, it will be a great help of worker. Just let machine do it!







Technical Data

Brand SmartWasp
Model X3
Load weight 500mm-2200mm
Turntable speed 30KG(adjustable)
Packing height Maximum 2000KG
Turntable size 3-12 RPM/mins
Stretch Type Maximum 2400mm
Up&down speed 1650mm(1800mm/2000mm)
Wrapping speed 300% (By Motor)
Film Width 1.5 ~5.5m/min.
Film diameter 20-30 loads (Pallet: 1.0x1.2x1.8m.)
Film paper Core 500mm(750mm optional)
Film weight 250mm
Machine power 76 mm (50 mm optional)
Voltage Maximum 17KG
Machine weight 1.9KW
Machine size 220V-240V/50/60HZ Single-Phase
Soft start&stop 900KG
Intelligent Alarm 2800*1650*3245mm(L*W*H)
Soft start&stop Inclued
Intelligent Alarm Inclued
stop at original Inclued
Pressure drive way Motor drive
Pressure mode with /without two pressure mode
Speed Adjustable Inclued / Ir
Measure height Automatic
Wrapping force Adjustable
Fix film on pallet Manual / Rokas
PLC SIEMENS
Inverter SIEMENS
Touch screen X-Line
Sensor brand SICK (Germany Brand)
safety device film carriage bottom safety
Certificate CE
Pallet grip system Optional
Product Memory Five Mode
Optional device Ramp ,Weighing scale
Automatic cut film Have(pallet grip function
orAuto cut film fucntion
Remote start machine Have
