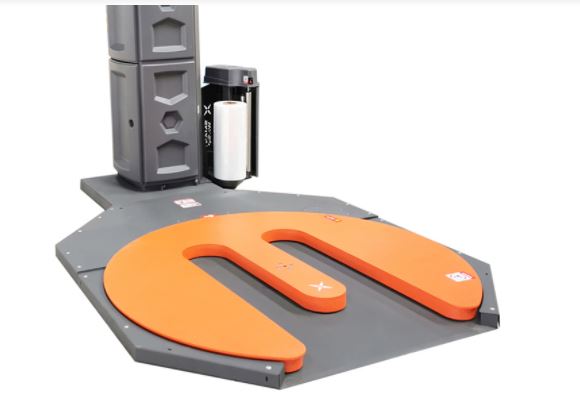

M-type turntable
The M-type turntable allows for easy pallet loading onto the machine.

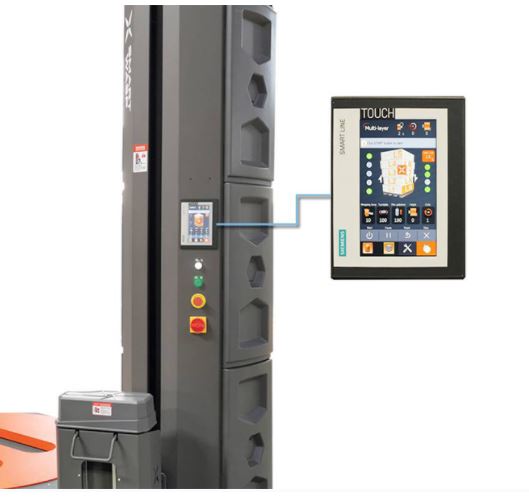

Multi-layer function
This function allows you to set different wrapping cycles and tension at any desired height. Up to 9 layers can be configured for a single pallet.
Standard pallet wrappers on the market apply uniform wrapping force from bottom to top and lack the ability to pause or provide reinforced wrapping during the process.

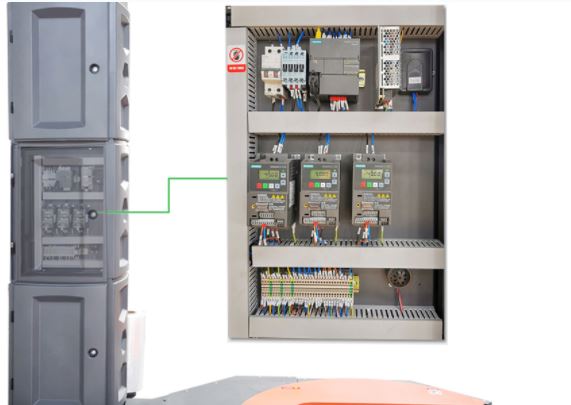

Premium spare parts
- SIEMENS PLC
- SICK proximity switch
- AUTONICS photoelectric switch
- WEIDMÜLLER terminal block
- SIEMENS inverter
- OMRON 24V DC power supply

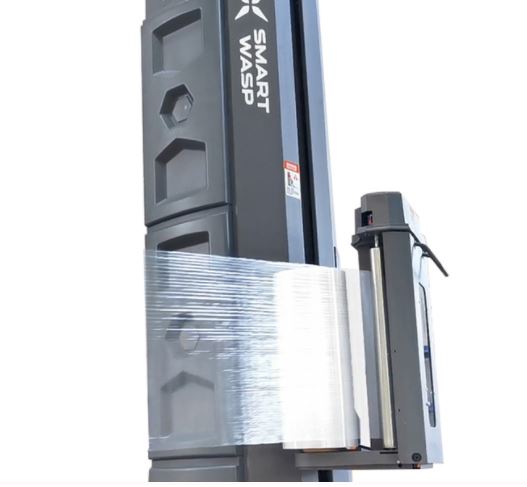

Film savings
- Maximum pre-stretch up to 380%
- Minimum cost per meter of stretch film
- Standard constant film delivery
- Fixed film consumption

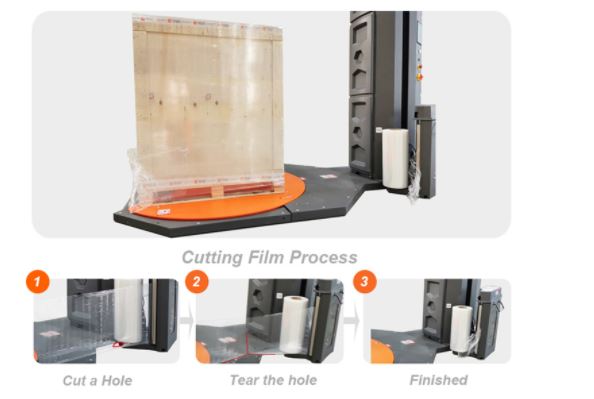

Automatic film cutting
The X5 automatic film cutting system eliminates the need for manual cutting, performing the task automatically.
Intelligent operation control system

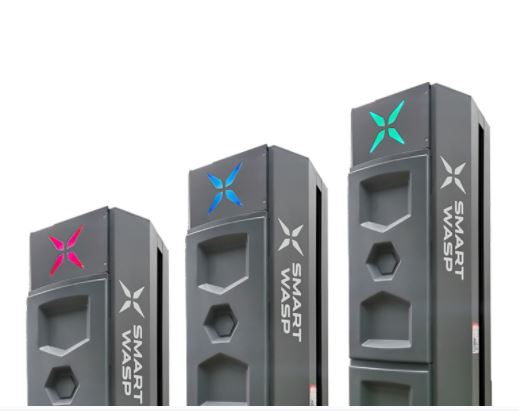

- X5 with LED indicator on the machine:
- Ready: Blue
- In operation: Green
- Alarm: Red
- The touchscreen guides the user through machine operation. In case of an alarm, the screen displays troubleshooting steps.

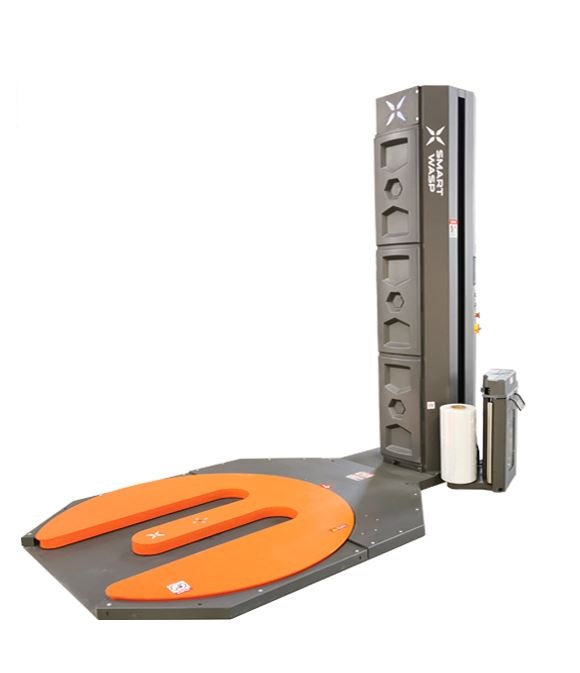

| Brand | SmartWasp |
|---|---|
| Model | X5 |
| Load weight | Max. 800 kg |
| Turntable rotation speed | 3-12 rpm |
| Load height | Max. 2400 mm |
| Turntable size | 1650 mm |
| Film stretch | 300% |
| Min./max. speed | 1.5 - 5.5 m/min |
| Wrapping speed | 20 to 25 loads (pallet size: 1.0×1.2×1.8 m) |
