Automatic film cutting
The X1 automatic film cutting system eliminates the need for manual cutting. The system performs this task automatically.
Multi-layer function
This function allows you to set different wrapping cycles and tension at any desired height. Up to 9 layers can be configured for a single pallet.
Standard pallet wrappers on the market apply uniform wrapping force from bottom to top and lack the ability to pause or provide reinforced wrapping during the process.

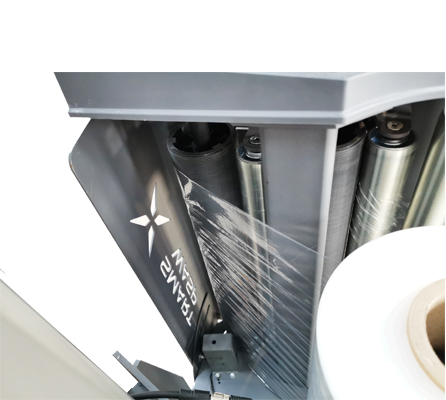

Film savings
- Maximum pre-stretch up to 380%
- Minimum cost per meter of stretch film
- Standard constant film delivery
- Fixed film consumption
Advanced safety technology

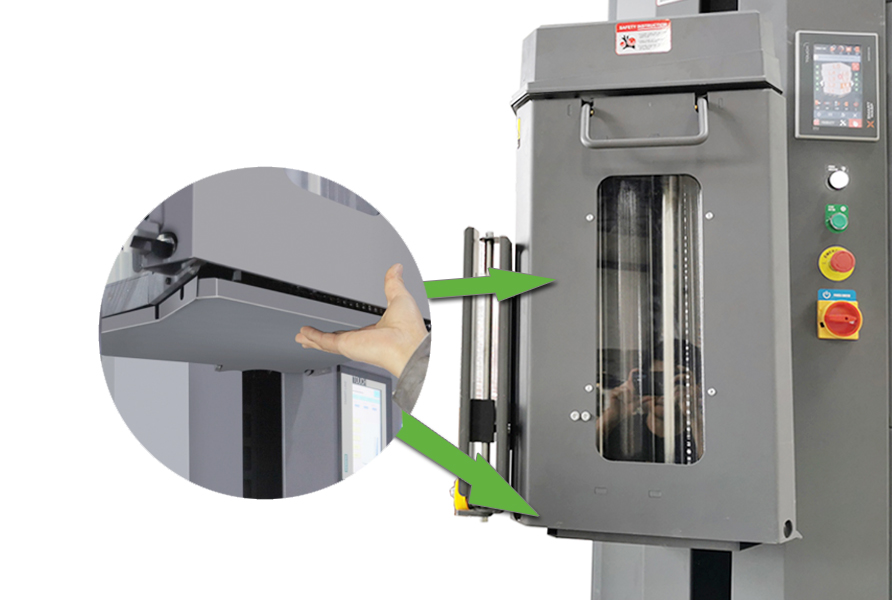

- Safety device under the carriage to protect the operator’s head and feet
- Transparent window helps identify issues quickly without opening the doors
- Belt deviation and emergency alarm system. The alarm triggers in time to prevent the carriage from falling

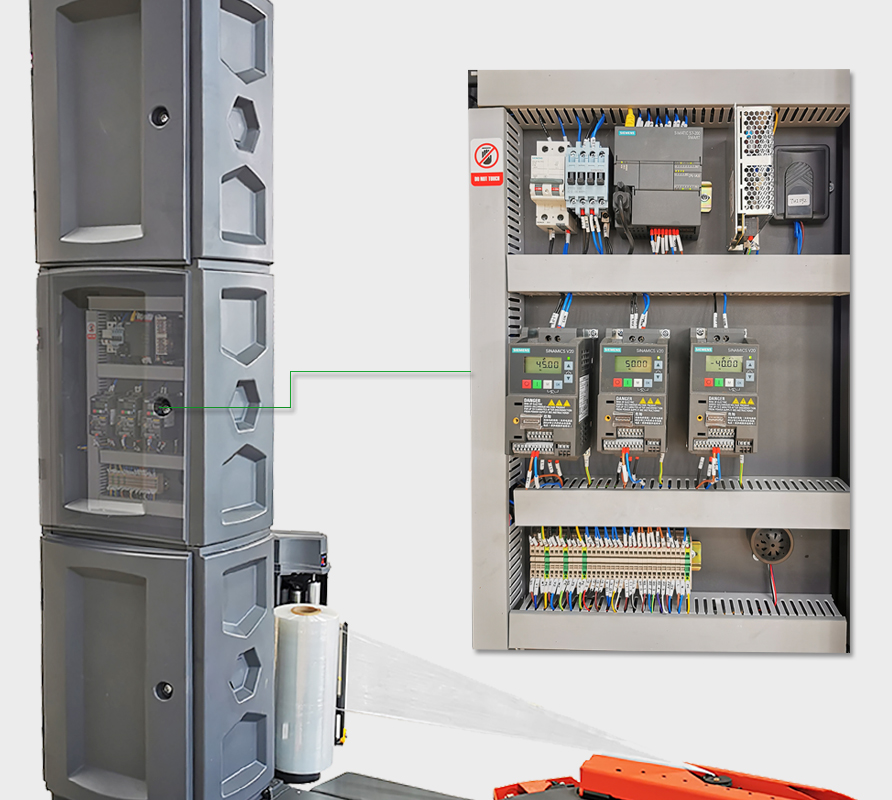

Premium spare parts
- SIEMENS PLC
- SICK sensor switch
- AUTONICS photoswitch
- WEIDMÜLLER terminal block
- SIEMENS inverter
- OMRON 24V DC power supply
Intelligent operation control system

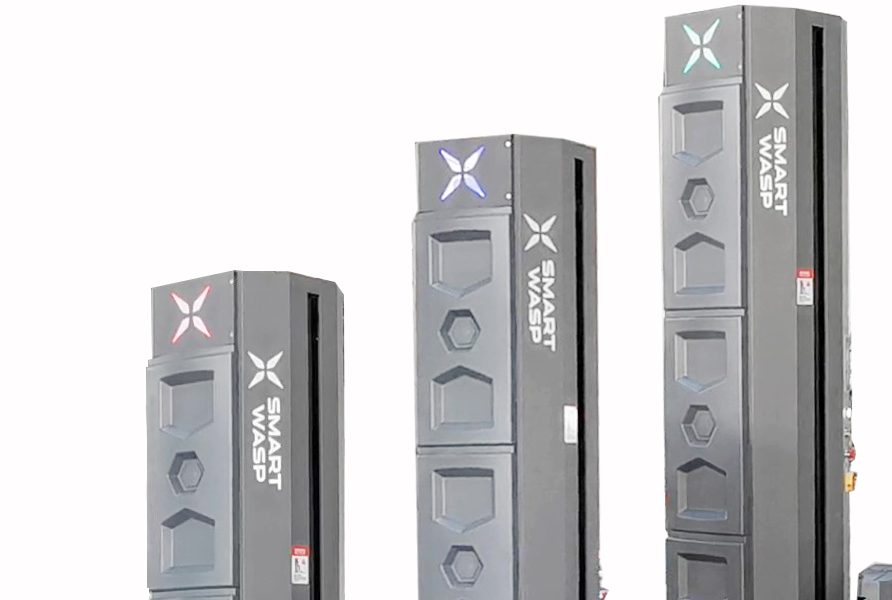

- X1 with LED indicator on the machine:
- Ready: Blue
- In operation: Green
- Alarm: Red

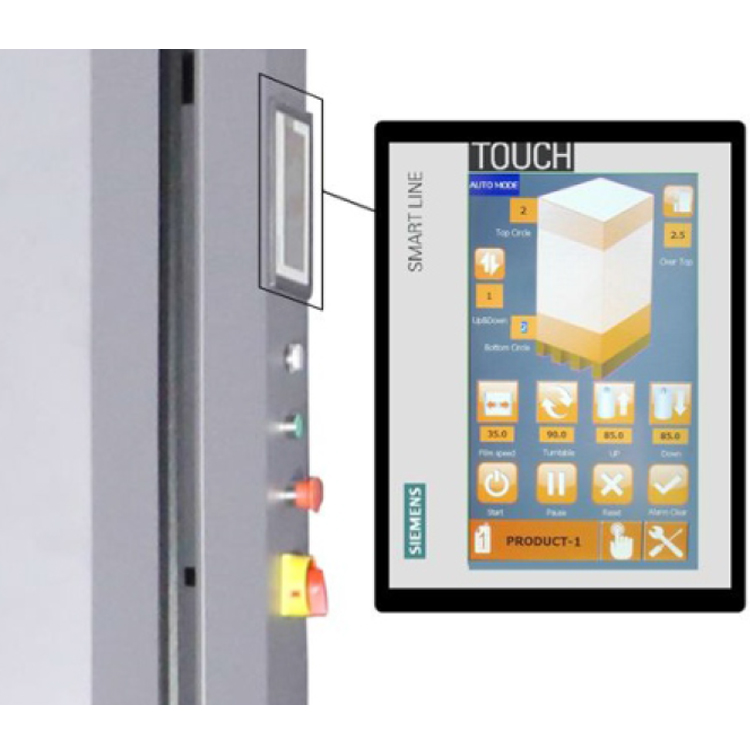

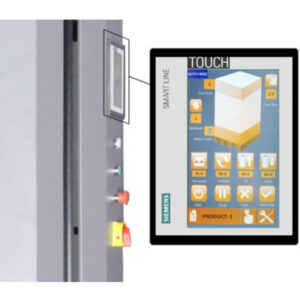

- The touchscreen guides the user through machine operation. In case of an alarm, the screen displays troubleshooting steps.
| Brand | SmartWasp |
|---|---|
| Model | X1 |
| Load weight | max. 2,000 kg |
| Turntable speed | 3–12 rpm |
| Load height | max. 2,400 mm |
| Turntable size | 1,650 mm (1,500 mm / 1,800 mm / 2,000 mm) |
| Film stretch | 300% |
| Min./max. speed | 1.5–5.5 m/min. |
| Wrapping speed | 20–30 loads (pallet size: 1.0×1.2×1.8 m) |
